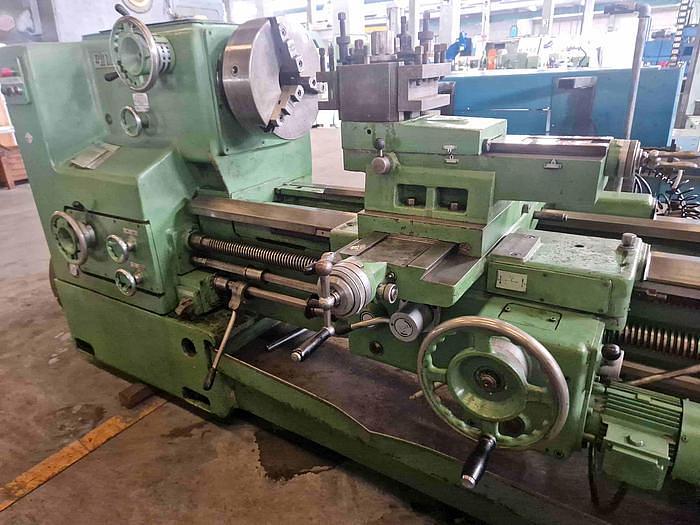

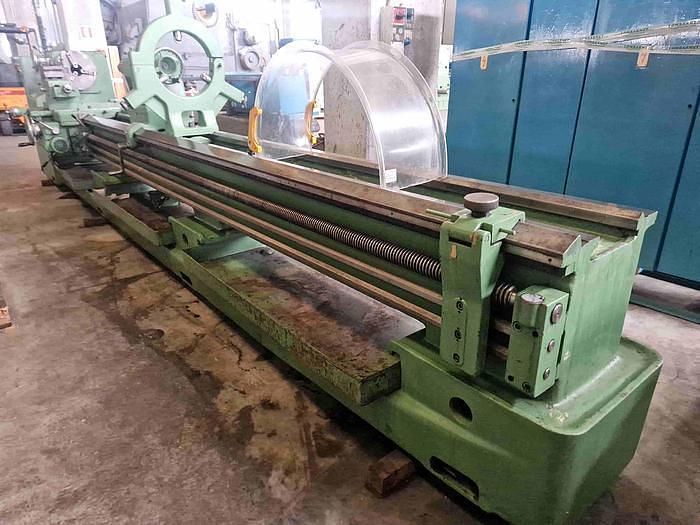

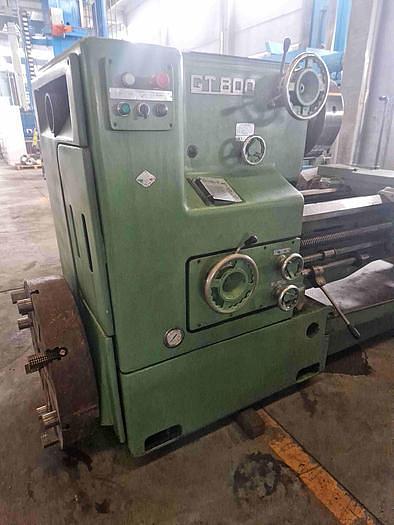

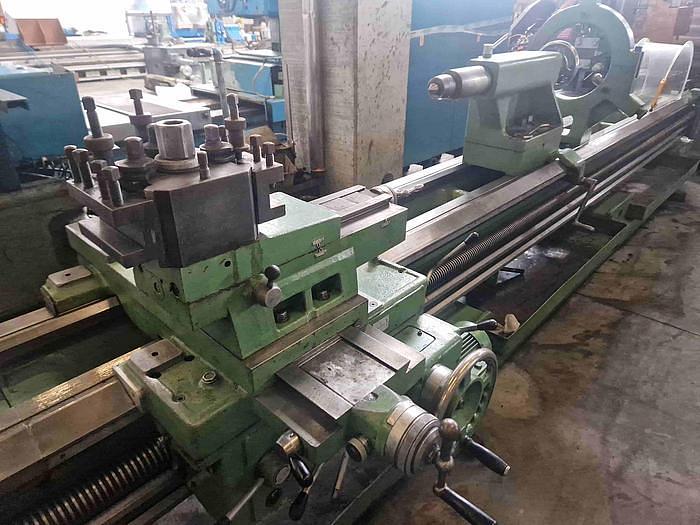

GT 800 TOVAGLIERI
or
Call +39 350 022 3332
Description

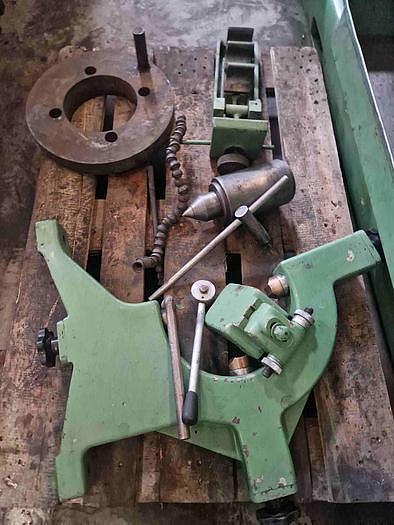

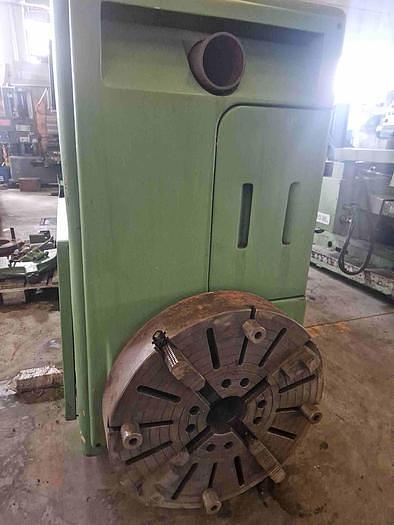

Complete with: * nr. 1 closed lunette * nr. 1 mobile lunette * nr. 1 platform with 4 independent jaws diam. 700 mm * nr. 1 self-centering diam. 400 mm
Specifications
| Manufacturer | TOVAGLIERI |
| Model | GT 800 |
| Stock Number | 4814 nl |
| distance to tips | 5000 mm |
| Point height | 415 mm |
| max turning diameter on the bench | 810 mm |
| flow | HP20 |
| Diameter on the wagon | 600mm |
| Diameter in the recess | 1.060 mm |
| Recess length | 450 mm |
| Pallet length | 480mm |
| Spindle motor power | 20 Hp |
| Spindle rotation speed | No.32;8-1.000 Rpm |
| Total weight | 8,500 kg |
